QuadratureMOC Class Reference

Base quadrature class for MOC. More...

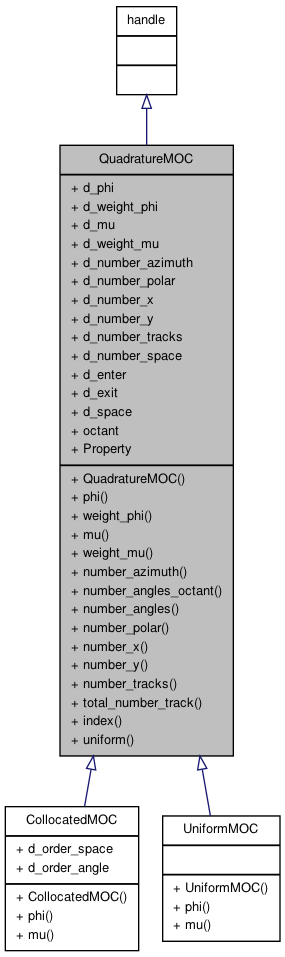

Inheritance diagram for QuadratureMOC:

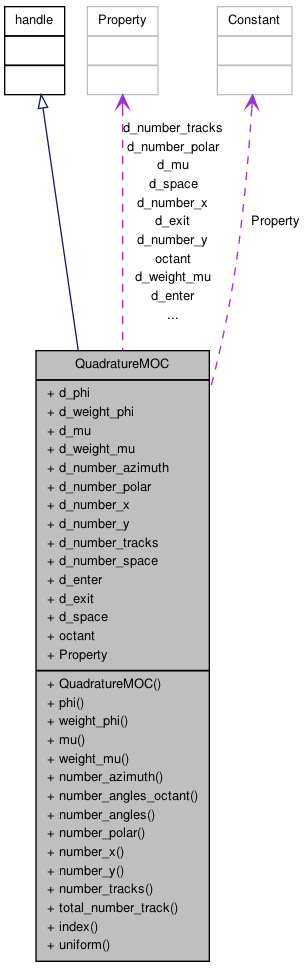

Collaboration diagram for QuadratureMOC:

List of all members.

Public Member Functions
function	QuadratureMOC (in number_polar)
	Class constructor.
function	phi (in obj, in o, in i)
function	weight_phi (in obj, in i)
function	mu (in obj, in i)
function	weight_mu (in obj, in i)
function	number_azimuth (in obj)
function	number_angles_octant (in obj)
function	number_angles (in obj)
function	number_polar (in obj)
function	number_x (in obj, in m)
function	number_y (in obj, in m)
function	number_tracks (in obj, in m)
function	total_number_track (in obj)
function	index (in obj, in o, in a)
	Computes cardinal angle index.
function	uniform (in obj, in a, in b, in m, in f)
Public Attributes
Property	d_phi
	Azimuthal angles (positive quadrant only)
Property	d_weight_phi
	Azimuthal weights.
Property	d_mu
	Polar cosines (w/r to the x-y plane)
Property	d_weight_mu
	Polar weights.
Property	d_number_azimuth
	Number of azimuthal angles.
Property	d_number_polar
	Number of polar angles.
Property	d_number_x
	Number horizontal intercepts.
Property	d_number_y
	Number vertical intercepts.
Property	d_number_tracks
Property	d_number_space
	Number of tracks.
Property	d_enter
Property	d_exit
Property	d_space
Constant Property	octant = [ 1 1 1
	Octant cosign signs.
Constant	Property

---

Detailed Description

Base quadrature class for MOC.

For the polar angle, T-Y quadrature for orders 1, 2, and 3 is allowed.

Azimuthal angles are defined by derived classes.

The azimuthal angles are stored for the first quadrant. Other quadrants are given an additive constant.

---

Constructor & Destructor Documentation

function QuadratureMOC

(

in

number_polar

)

Class constructor.

Parameters:

number_polar

Number of polar angles used.

Returns:

Instance of the QuadratureMOC class.

---

Member Function Documentation

function index	(	in	obj,
		in	o,
		in	a
	)

Computes cardinal angle index.

Returns:

Index.

function mu	(	in	obj,
		in	i
	)

Reimplemented in CollocatedMOC, and UniformMOC.

function number_angles

(

in

obj

)

function number_angles_octant

(

in

obj

)

function number_azimuth

(

in

obj

)

function number_polar

(

in

obj

)

function number_tracks	(	in	obj,
		in	m
	)

function number_x	(	in	obj,
		in	m
	)

function number_y	(	in	obj,
		in	m
	)

function phi	(	in	obj,
		in	o,
		in	i
	)

Reimplemented in CollocatedMOC, and UniformMOC.

function total_number_track

(

in

obj

)

function uniform	(	in	obj,
		in	a,
		in	b,
		in	m,
		in	f
	)

function weight_mu	(	in	obj,
		in	i
	)

function weight_phi	(	in	obj,
		in	i
	)

---

Member Data Documentation

Property d_enter

Property d_exit

Property d_mu

Polar cosines (w/r to the x-y plane)

Property d_number_azimuth

Number of azimuthal angles.

Property d_number_polar

Number of polar angles.

Property d_number_space

Number of tracks.

Property d_number_tracks

Property d_number_x

Number horizontal intercepts.

Property d_number_y

Number vertical intercepts.

Property d_phi

Azimuthal angles (positive quadrant only)

Property d_space

Property d_weight_mu

Polar weights.

Property d_weight_phi

Azimuthal weights.

Constant Property octant = [ 1 1 1

Octant cosign signs.

Constant Property

---

The documentation for this class was generated from the following file:

• /home/robertsj/Research/matlab_transport_pack/source/QuadratureMOC.m
