Step characteristic approximation for MOC. More...

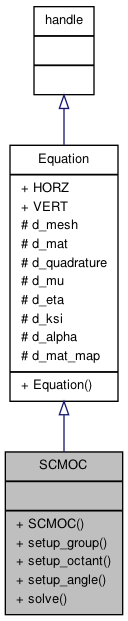

Inheritance diagram for SCMOC:

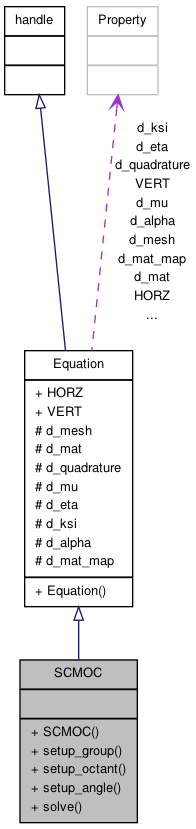

Collaboration diagram for SCMOC:

Public Member Functions
function	SCMOC (in mesh, in mat)
	Class constructor.
function	setup_group (in obj, in group)
	Setup the equations for a group.
function	setup_octant (in obj, in octant)
	Setup the equations for an octant.
function	setup_angle (in obj, in phi, in ignoredArg)
	Setup the equations for an angle.
function	solve (in obj, in psi_in, in s, in sig, in t)
	Solve for the cell-center and outgoing edge fluxes.
Public Attributes
Constant Property	HORZ = 1
Constant Property	VERT = 2
Protected Attributes
Property	d_mesh
	Problem mesh.
Property	d_mat
	Material definitions.
Property	d_quadrature
	Quadrature.
Property	d_mu
	Current mu value.
Property	d_eta
	current eta value
Property	d_ksi
	Current ksi value.
Property	d_alpha
	Weighted diamond difference parameter.
Property	d_mat_map
	Material map.

Detailed Description

Step characteristic approximation for MOC.

In the method of characteristics, the flux is solved for along a track assuming a flat source. For a given incident flux into a track segment, we can define the outgoing segment flux

$\psi_{out} = A\psi_{in} + B Q \, ,$

and average segment flux

$\bar{\psi} = \frac{1}{l} \Big ( B \psi_{in} + C Q \Big ) \, ,$

where

$A = e^{-\Sigma_t \tau} \, ,$

$B = \frac{1}{\Sigma_t} ( 1- A ) \, ,$

and

$C = \frac{l}{\Sigma_t} \Big( 1- \frac{1-A}{\tau} \Big ) \, ,$

where $ l $ is the segment length and $\tau = \Sigma_t l$ is optical path length.

The step characteristic method is positive but only first-order accurate in space.

Reference: A. Hebert, Applied Reactor Physics.

See also:: DDMOC

Constructor & Destructor Documentation

function SCMOC	(	in	mesh,
		in	mat
	)

Class constructor.

Set the mesh and material.

Parameters:

mesh	Problem mesh.
mat	Material definitions.

Returns:: Instance of the SCMOC class.

Member Function Documentation

function setup_angle	(	in	obj,
		in	phi,
		in	ignoredArg
	)

Setup the equations for an angle.

Parameters:

phi	Azimuth with respect to x axis.

function setup_group	(	in	obj,
		in	group
	)

Setup the equations for a group.

Here, we'll go through the grid and produce a fine mesh matrix of total cross-sections. This isn't the best thing for memory, but it cuts down a lot on the time within solve.

Parameters:

group Current group.

function setup_octant	(	in	obj,
		in	octant
	)

Setup the equations for an octant.

Parameters:

octant Current octant.

function solve	(	in	obj,
		in	psi_in,
		in	s,
		in	sig,
		in	t
	)

Solve for the cell-center and outgoing edge fluxes.

Parameters:

psi_in	Incident flux vector
s	Region isotropic source
sig	Region total cross-section
t	Segment length (includes polar scaling)

Returns:: Segment exit and average angular flux.

Member Data Documentation

Property d_alpha [protected, inherited]

Weighted diamond difference parameter.

Property d_eta [protected, inherited]

current eta value

Property d_ksi [protected, inherited]

Current ksi value.

Property d_mat [protected, inherited]

Material definitions.

Property d_mat_map [protected, inherited]

Material map.

Property d_mesh [protected, inherited]

Problem mesh.

Property d_mu [protected, inherited]

Current mu value.

Property d_quadrature [protected, inherited]

Quadrature.

Constant Property HORZ = 1 [inherited]

Constant Property VERT = 2 [inherited]

The documentation for this class was generated from the following file:

/home/robertsj/Research/matlab_transport_pack/source/SCMOC.m
