Livolant acceleration for inner iterations. More...

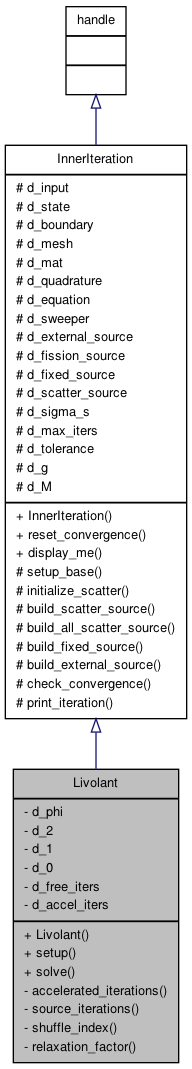

Inheritance diagram for Livolant:

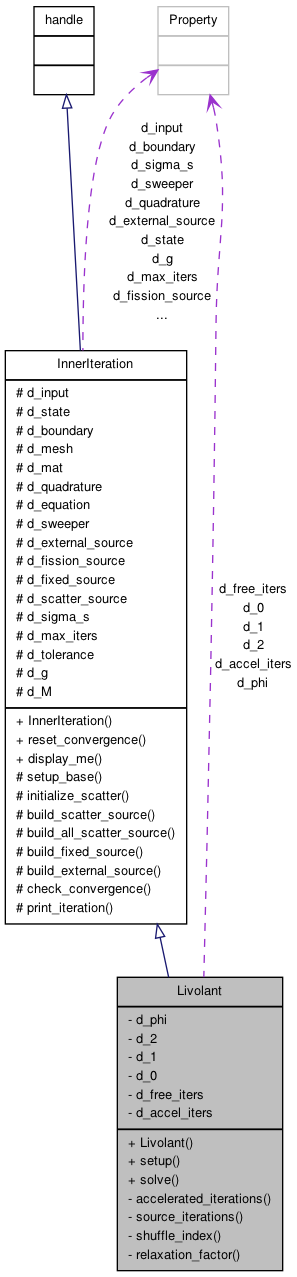

Collaboration diagram for Livolant:

Public Member Functions
function	Livolant ()
	Class constructor.
function	setup (in obj, in)
	Setup the solver.
function	solve (in obj, in g)
	Solve the within-group problem.
function	reset_convergence (in this, in max_iters, in tolerance)
	Solve the within-group problem.
function	display_me (in this)
Protected Member Functions
function	setup_base (in this, in)
	Setup the base solver.
function	initialize_scatter (in this)
	Prebuild scattering matrix for each cell.
function	build_scatter_source (in this, in g, in phi)
	Build the within-group scattering source.
function	build_all_scatter_source (in this, in g, in phi)
	Build all the scattering sources.
function	build_fixed_source (in this, in g)
	Build source for this group excluding within-group scatter.
function	build_external_source (in this, in g)
function	check_convergence (in this, in iteration, in flux_error)
function	print_iteration (in this, in it, in e0, in e1, in e2)
Protected Attributes
Property	d_input
	User input.
Property	d_state
	State vectors.
Property	d_boundary
	Boundary fluxes.
Property	d_mesh
	Problem mesh (either Cartesian mesh or MOC tracking)
Property	d_mat
	Materials definitions.
Property	d_quadrature
	Angular mesh.
Property	d_equation
	Spatial discretization.
Property	d_sweeper
	Sweeper over the space-angle domain.
Property	d_external_source
	User-defined external source.
Property	d_fission_source
	Fission source, if used.
Property	d_fixed_source
	Any source that remains "fixed" within the group solve.
Property	d_scatter_source
	The within group scattering source.
Property	d_sigma_s
	Scattering cross-section vector for faster source computation.
Property	d_max_iters
Property	d_tolerance
Property	d_g
Property	d_M
	Moments to discrete operator.
Private Member Functions
function	accelerated_iterations (in obj, in g, in mu)
	Perform a few source iterations.
function	source_iterations (in obj, in g)
	Perform a few source iterations.
function	shuffle_index (in obj)
	Shuffle indices so that storage is reused.
function	relaxation_factor (in obj, in e0, in e1)
	Compute the relaxation factor from two residual vectors.
Private Attributes
Property	d_phi
	A three column vector of current, last, and penultimate fluxes.
Property	d_2
	Column index of current flux.
Property	d_1
	Column index of last flux.
Property	d_0
	Column index of penultimate flux.
Property	d_free_iters
	Number of free iterations.
Property	d_accel_iters
	Number of acceleration iteration.

Detailed Description

Livolant acceleration for inner iterations.

Source iteration for a one-group transport equation is defined by the sequence

$\phi^{(l+1)} = \frac{1}{4\pi}\mathbf{D}\mathbf{T}^{-1}\mathbf{S} \phi^{(l)} + \mathbf{D} \mathbf{T}^{-1} Q \, .$

Simplifying notation, we have

$\phi^{(l+1)} = \mathbf{H} \phi^{(l)} + q\, .$

Livolant acceleration solves this via relaxation, or

$\phi^{(l+1)} = \phi^{(l)} + \mu R^{(l+1)}\, ,$

where $\mu$ is a relaxation parameter and $R$ is the residual, defined as the difference between successive flux estimates.

Here, $\mu$ is dynamically updated to minimize the residual. In other words, we choose $\mu$ to minimize

$R^{(l+1)} = R^{(l)} + \mu \Big ( \mathbf{H} R^{(l)}-R^{(l)} \Big ) \, .$

Doing so in a least-squares sense (i.e. via the $L_2 $ norm) yields

$\mu^{(l)} = -\frac{ (R^{(l)})^T (\mathbf{H} R^{(l)}-\mathbf{R}^{(l)}) } { || \mathbf{H} \mathbf{R}^{(l)}-\mathbf{R}^{(l)} ||^2_2 } \, .$

The implementation is sketched as follows (which follows Hebert). Suppose we have three sequential flux estimates from regular source iterations,

$\Phi^{(0)} = \phi^{(l)} \, ,$

$\Phi^{(1)} = \mathbf{H} \Phi^{(0)} + q\, ,$

and

$\Phi^{(2)} = \mathbf{H} \Phi^{(1)} + q\, .$

Using these, we define the first two residuals as

$e_0 = \Phi^{(1)} - \Phi^{(0)} = R^{(l)} \, .$

$e_1 = \Phi^{(2)} - \Phi^{(1)} \, .$

and

$\mu^{(l)} = -\frac{e^T_0(e_1-e_0) } { ||e_1 - e_0)||^2_2 } \, .$

The accelerated estimate is

$\phi^{(l+1)} = \phi^{(l)} + \mu^{(l)} R^{(l)} \, .$

We need three new successive estimates to reestimate $\mu$ . These are

$\tilde{\Phi}^{(0)} = \phi^{(l+1)} \, ,$

$\tilde{\Phi}^{(1)} = \mathbf{H} \tilde{\Phi}^{(0)} + q = \mu^{(l)} \Phi^{(2)} + (1-\mu^{(l)})\Phi^{(1)}\, ,$

and

$\tilde{\Phi}^{(2)} = \mathbf{H} \tilde{\Phi}^{(1)} + q\, .$

Notice that the first two estimates require nothing new. Only the last iterate requires further application of the operators.

Hebert suggests doing three source (or "free") iterations, followed by three accelerated iterations for the sake of stability. What this means is that three source iterations are performed, resulting in an updated $\mu$ at a cost of three sweeps. Then, the sequence of $\tilde{\Phi}$ 's is performed three times, with each sequence resulting in a new $\mu$ at a cost of a single sweep. Hence, the Livolant iteration costs little more than source iteration in computational expense and an extra flux-sized vector or two in storage depending on implementation.

The iteration limits are defaulted (to three each), but the user can change these. However, doing so may yield poor stability. In particular, negative values for $\mu$ are problematic (and if found to be negative, the accelerated iterations are simply skipped with a warning.

Input parameters specific to Livolant:

livolant_free_iters (default: 3)
livolant_accel_iters (default: 3)

Todo:: Livolant, like GMRES, seems to work poorly for reflected conditions. There probably is a proper "consistent" way to include these conditions, but I don't know it yet.

For other relevant parameters, see InnerIteration.

Reference: Hebert, A. Applied Reactor Physics. See pp. 147-148 and 345-347.

See also:: SourceIteration

Constructor & Destructor Documentation

function Livolant ( )

Class constructor.

Returns:: Instance of the SourceIteration class.

Member Function Documentation

function accelerated_iterations	(	in	obj,
		in	g,
		in	mu
	)		`[private]`

Perform a few source iterations.

Parameters:

g	Current group.
mu	Current value of relaxation parameter.

Returns:: Norm of current flux residual.

function build_all_scatter_source	(	in	this,
		in	g,
		in	phi
	)		`[protected, inherited]`

Build all the scattering sources.

Parameters:

g	Group for this problem. (I.e. row in MG).
phi	Current MG flux.

function build_external_source	(	in	this,
		in	g
	)		`[protected, inherited]`

function build_fixed_source	(	in	this,
		in	g
	)		`[protected, inherited]`

Build source for this group excluding within-group scatter.

Parameters:

g	Group for this problem.

function build_scatter_source	(	in	this,
		in	g,
		in	phi
	)		`[protected, inherited]`

Build the within-group scattering source.

Parameters:

g	Group for this problem.
phi	Current group flux.

function check_convergence	(	in	this,
		in	iteration,
		in	flux_error
	)		`[protected, inherited]`

function display_me ( in this ) [inherited]

function initialize_scatter ( in this ) [protected, inherited]

Prebuild scattering matrix for each cell.

While not the most *memory* efficient, this saves *time* by eliminate lots of loops.

function print_iteration	(	in	this,
		in	it,
		in	e0,
		in	e1,
		in	e2
	)		`[protected, inherited]`

function relaxation_factor	(	in	obj,
		in	e0,
		in	e1
	)		`[private]`

Compute the relaxation factor from two residual vectors.

Parameters:

e0	Previous residual.
e1	Current residual.

Returns:: Relaxation factor, $\mu$ .

function reset_convergence	(	in	this,
		in	max_iters,
		in	tolerance
	)		`[inherited]`

Solve the within-group problem.

Parameters:

g	Group of the problem to be solved.

Returns:: Flux residual (L-inf norm) and iteration count. Reset convergence criteria. It can be useful to use a dynamically changing convergence criteria, especially for eigenproblems. For regular power iteration, it is wasteful to use tight tolerances on the inners when the source is not as tightly known.

Parameters:

max_iters	Maximum number of iterations.
tolerance	Maximum point-wise error in flux

function setup	(	in	obj,
		in
	)

Setup the solver.

Parameters:

input	Input database.
state	State vectors, etc.
boundary	Boundary fluxes.
mesh	Problem mesh.
mat	Material definitions.
quadrature	Angular mesh..
external_source	User-defined external source.
fission_source	Fission source.

function setup_base	(	in	this,
		in
	)		`[protected, inherited]`

Setup the base solver.

By keeping everything out of the constructor, we can avoid having to copy the signature for all derived classes, both in their definitions and whereever thisects are instantiated. However, derived classes have other setup issues that need to be done, and so this serves as a general setup function that must be called before other setup stuff.

Parameters:

input	Input database.
state	State vectors, etc.
boundary	Boundary fluxes.
mesh	Problem mesh.
mat	Material definitions.
quadrature	Angular mesh..
external_source	User-defined external source.
fission_source	Fission source.

function shuffle_index ( in obj ) [private]

Shuffle indices so that storage is reused.

This is performed before and iteration so that the "2" flux can be written into.

function solve	(	in	obj,
		in	g
	)

Solve the within-group problem.

Parameters:

g	Group of the problem to be solved.

Returns:: Flux residual (L-inf norm) and iteration (sweep) count.

function source_iterations	(	in	obj,
		in	g
	)		`[private]`

Perform a few source iterations.

Parameters:

g	Current group.

Returns:: Relaxation parameter and norm of flux residual.

Member Data Documentation

Property d_0 [private]

Column index of penultimate flux.

Property d_1 [private]

Column index of last flux.

Property d_2 [private]

Column index of current flux.

Property d_accel_iters [private]

Number of acceleration iteration.

Property d_boundary [protected, inherited]

Boundary fluxes.

Property d_equation [protected, inherited]

Spatial discretization.

Property d_external_source [protected, inherited]

User-defined external source.

Property d_fission_source [protected, inherited]

Fission source, if used.

Property d_fixed_source [protected, inherited]

Any source that remains "fixed" within the group solve.

Property d_free_iters [private]

Number of free iterations.

Property d_g [protected, inherited]

Property d_input [protected, inherited]

User input.

Property d_M [protected, inherited]

Moments to discrete operator.

Property d_mat [protected, inherited]

Materials definitions.

Property d_max_iters [protected, inherited]

Property d_mesh [protected, inherited]

Problem mesh (either Cartesian mesh or MOC tracking)

Property d_phi [private]

A three column vector of current, last, and penultimate fluxes.

Property d_quadrature [protected, inherited]

Angular mesh.

Property d_scatter_source [protected, inherited]

The within group scattering source.

Property d_sigma_s [protected, inherited]

Scattering cross-section vector for faster source computation.

Property d_state [protected, inherited]

State vectors.

Property d_sweeper [protected, inherited]

Sweeper over the space-angle domain.

Property d_tolerance [protected, inherited]

The documentation for this class was generated from the following file:

/home/robertsj/Research/matlab_transport_pack/source/Livolant.m
