Core Class Reference

Represents reactor Core. More...

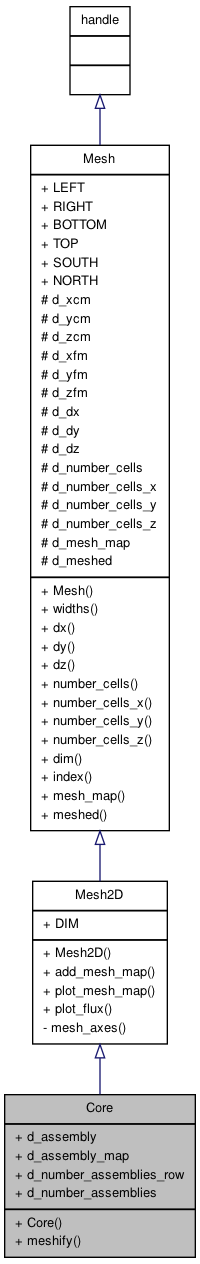

Inheritance diagram for Core:

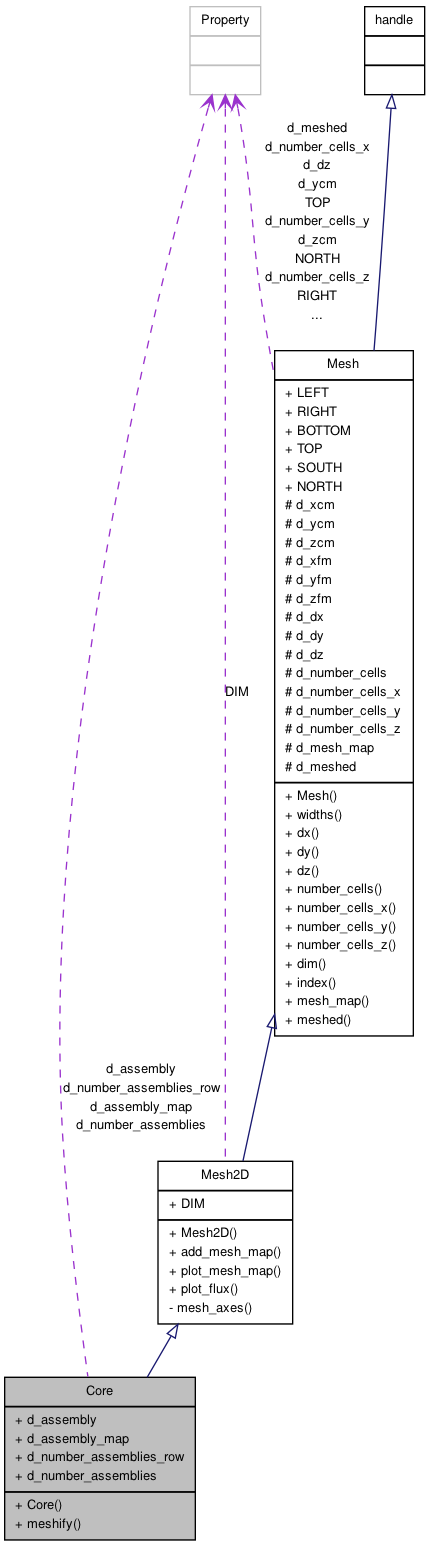

Collaboration diagram for Core:

List of all members.

Public Member Functions
function	Core (in assemblies, in assembly_map)
	Class constructor.
function	meshify (in obj)
	Construct a mesh over the core.
function	add_mesh_map (in obj, in mesh_map, in map_key)
	Add a map to the mesh.
function	plot_mesh_map (in obj, in mapkey)
	Plot a mesh map on the mesh.
function	plot_flux (in obj, in f)
	Plot a given flux or flux-shaped vector on the mesh.
function	widths (in obj)
	Get cell array of width vectors.
function	dx (in obj, in i)
	Width along x-axis for a cell.
function	dy (in obj, in i)
	Width along y-axis for a cell.
function	dz (in obj, in i)
	Width along z-axis for a cell.
function	number_cells (in obj)
	Get the total number of cells.
function	number_cells_x (in obj)
	Get the number of cells along the x axis.
function	number_cells_y (in obj)
	Get the number of cells along the y axis.
function	number_cells_z (in obj)
	Get the number of cells along the z axis.
function	dim (in obj, in i)
	Get the number of cells along the an axis.
function	index (in obj, in i, in j, in k)
	Returns the cardinal index for i, j, and k.
function	mesh_map (in obj, in map_key)
	Get a mesh map.
function	meshed (in obj)
Public Attributes
Property	d_assembly
	Cell array of assembly objects.
Property	d_assembly_map
	Array of assembly locations.
Property	d_number_assemblies_row
	Number of assemblies per row.
Property	d_number_assemblies
	Total number of assemblies.
Constant Property	DIM = 2
Constant Property	LEFT = 1
Constant Property	RIGHT = 2
Constant Property	BOTTOM = 3
Constant Property	TOP = 4
Constant Property	SOUTH = 5
Constant Property	NORTH = 6
Protected Attributes
Property	d_xcm
	x coarse mesh boundaries
Property	d_ycm
	y coarse mesh boundaries
Property	d_zcm
	z coarse mesh boundaries
Property	d_xfm
	x fine meshes in each x coarse mesh
Property	d_yfm
	y fine meshes in each y coarse mesh
Property	d_zfm
	z fine meshes in each y coarse mesh
Property	d_dx
	x widths
Property	d_dy
	y widths
Property	d_dz
	z widths
Property	d_number_cells
	Total number of cells.
Property	d_number_cells_x
	Number of cells in x direction.
Property	d_number_cells_y
	Number of cells in y direction.
Property	d_number_cells_z
	Number of cells in y direction.
Property	d_mesh_map
	Map container containing a key describing a mesh property and a fine mesh map defining the property in each cell.
Property	d_meshed
	Flag indicating I'm meshed.

---

Detailed Description

Represents reactor Core.

More here.

---

Constructor & Destructor Documentation

function Core	(	in	assemblies,
		in	assembly_map
	)

Class constructor.

Parameters:

assemblies	Cell array of pin objects.
assembly_map	2-D array of pin locations.

Returns:

Instance of the Core class.

---

Member Function Documentation

function add_mesh_map	(	in	obj,
		in	mesh_map,
		in	map_key
	)		[inherited]

Add a map to the mesh.

Parameters:

mesh_map	Map on the coarse mesh.
map_key	Key (descriptor) for this map.

function dim	(	in	obj,
		in	i
	)		[inherited]

Get the number of cells along the an axis.

Returns:

Number of cells.

Reimplemented in Mesh1D.

function dx	(	in	obj,
		in	i
	)		[inherited]

Width along x-axis for a cell.

Returns:

Width.

Reimplemented in Mesh1D.

function dy	(	in	obj,
		in	i
	)		[inherited]

Width along y-axis for a cell.

Returns:

Width.

Reimplemented in Mesh1D.

function dz	(	in	obj,
		in	i
	)		[inherited]

Width along z-axis for a cell.

Returns:

Width.

function index	(	in	obj,
		in	i,
		in	j,
		in	k
	)		[inherited]

Returns the cardinal index for i, j, and k.

For efficiency, the client may want to hardcode the indexing into their routine, as this is suboptimal within a loop.

Returns:

Index.

function mesh_map	(	in	obj,
		in	map_key
	)		[inherited]

Get a mesh map.

Parameters:

mesh_key

A mesh map key.

Returns:

The map.

Reimplemented in Mesh1D.

function meshed

(

in

obj

)

[inherited]

function meshify

(

in

obj

)

Construct a mesh over the core.

Using the underlying pin assembly meshes, this constructs a core mesh. The assembly mesh maps are translated to the assembly. More work will be to differentiate pins.

function number_cells

(

in

obj

)

[inherited]

Get the total number of cells.

Returns:

Number of cells.

Reimplemented in Mesh1D.

function number_cells_x

(

in

obj

)

[inherited]

Get the number of cells along the x axis.

Returns:

Number of cells.

Reimplemented in Mesh1D.

function number_cells_y

(

in

obj

)

[inherited]

Get the number of cells along the y axis.

Returns:

Number of cells.

Reimplemented in Mesh1D.

function number_cells_z

(

in

obj

)

[inherited]

Get the number of cells along the z axis.

Returns:

Number of cells.

function plot_flux	(	in	obj,
		in	f
	)		[inherited]

Plot a given flux or flux-shaped vector on the mesh.

Parameters:

f	A vector of values that live on the mesh.

function plot_mesh_map	(	in	obj,
		in	mapkey
	)		[inherited]

Plot a mesh map on the mesh.

Parameters:

map_key

A mesh map key.

function widths

(

in

obj

)

[inherited]

Get cell array of width vectors.

Returns:

Cell array of width vectors.

Reimplemented in Mesh1D.

---

Member Data Documentation

Constant Property BOTTOM = 3 [inherited]

Property d_assembly

Cell array of assembly objects.

Property d_assembly_map

Array of assembly locations.

Property d_dx [protected, inherited]

x widths

Property d_dy [protected, inherited]

y widths

Property d_dz [protected, inherited]

z widths

Property d_mesh_map [protected, inherited]

Map container containing a key describing a mesh property and a fine mesh map defining the property in each cell.

These properties include materials, coarse mesh regions (pins, assembly, fuel, moderator, etc.), and anything else the user wants to edit.

Property d_meshed [protected, inherited]

Flag indicating I'm meshed.

Property d_number_assemblies

Total number of assemblies.

Property d_number_assemblies_row

Number of assemblies per row.

Property d_number_cells [protected, inherited]

Total number of cells.

Property d_number_cells_x [protected, inherited]

Number of cells in x direction.

Property d_number_cells_y [protected, inherited]

Number of cells in y direction.

Property d_number_cells_z [protected, inherited]

Number of cells in y direction.

Property d_xcm [protected, inherited]

x coarse mesh boundaries

Property d_xfm [protected, inherited]

x fine meshes in each x coarse mesh

Property d_ycm [protected, inherited]

y coarse mesh boundaries

Property d_yfm [protected, inherited]

y fine meshes in each y coarse mesh

Property d_zcm [protected, inherited]

z coarse mesh boundaries

Property d_zfm [protected, inherited]

z fine meshes in each y coarse mesh

Constant Property DIM = 2 [inherited]

Constant Property LEFT = 1 [inherited]

Constant Property NORTH = 6 [inherited]

Constant Property RIGHT = 2 [inherited]

Constant Property SOUTH = 5 [inherited]

Constant Property TOP = 4 [inherited]

---

The documentation for this class was generated from the following file:

• /home/robertsj/Research/matlab_transport_pack/source/Core.m
